FRP Perforated Cable Trays

Continuous perforated bottom cable trays offering total physical shielding and uniform support for control and instrumentation cables.

Explore Channel Trays
FRP Perforated Cable Trays
Solid Bottom • Pre-Drilled Perforated Routing
Perforated Cable Tray Main
Perforated Tray Detail 1

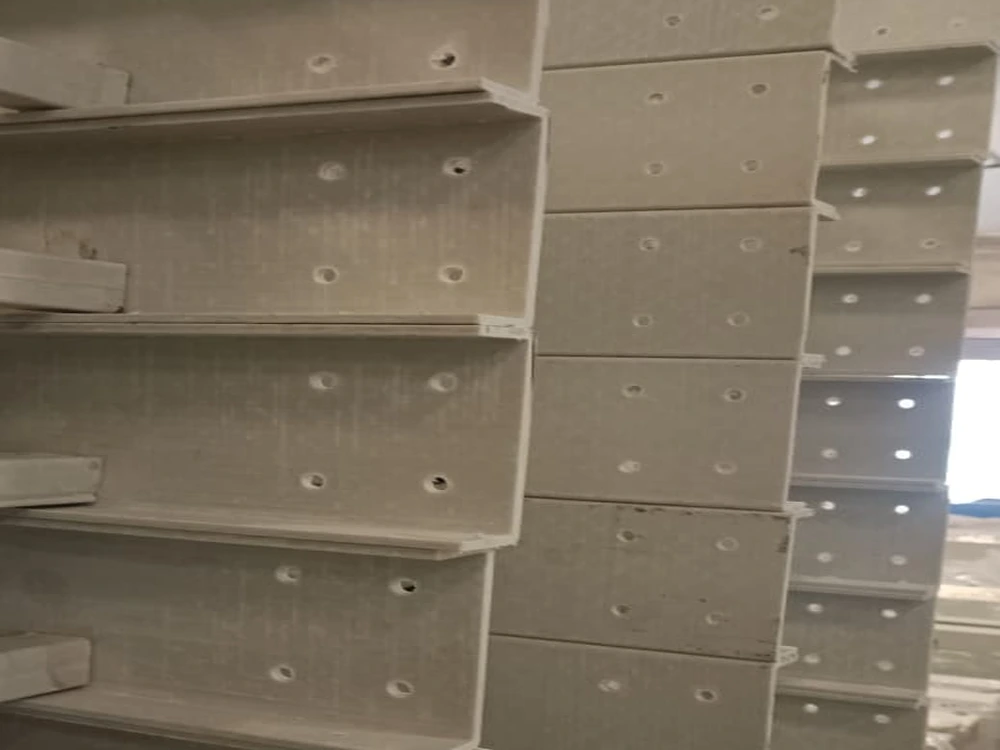

Perforated Tray Detail 2
Instrumentation Cable Containment

Perforated Cable Trays

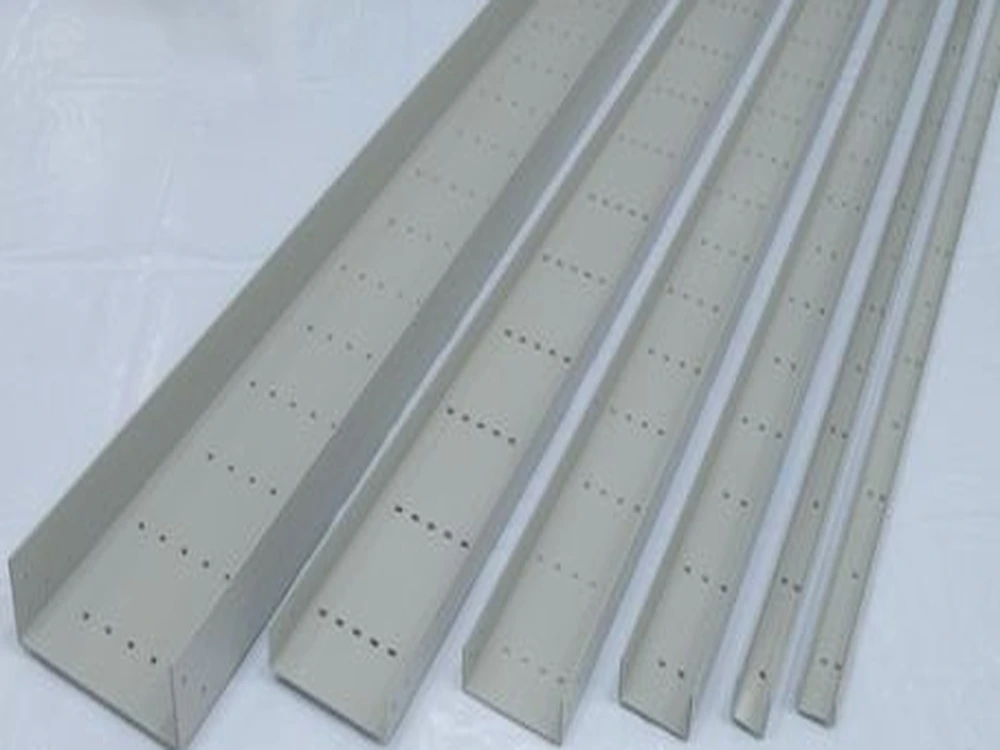

FRP Perforated Cable Trays

Our channel type cable trays with a solid bottom are purposefully designed to cater to light loads, specifically suited for the management of instrumentation and control cables. These trays are also exceptionally well-suited for facilitating smooth transitions from larger cable trays to individual control points within your infrastructure.

FRP / GRP cable trays are good replacement of G.I / M.S cable trays, which tend to corrode, erode and spread heat thus leading to power interruptions.

On the other hand FRP cable trays safe, durable, cost effective and easy to install. FTC manufactures these cable trays as per NEMA / BIS / Consultants Specification.

Bottom Style Perforated / Solid
Compliance NEMA / BIS Specs
Corrosion 100% Rust-Proof
Engineering Advantages

Advantages of FRP / GRP Perforated Cable Trays

Engineered to replace vulnerable metallic ducting and galvanized iron conduits in chemically aggressive environments.

✓
Corrosion resistanceImmune to acids, alkalis, and salt air.
✓
Light weightEasy to move and place without crane equipment.
✓
Electrical insulationExcellent dielectric properties protect wiring.
✓
High strength to weightCarries cable runs with minimal structural deflection.
✓
No earthing requiredNon-metallic structure eliminates earthing loops.
✓
Low thermal conductivityInsulates internal cabling from thermal peaks.
✓
U.V resistantSpecial UV inhibitors prevent solar embrittlement.
✓
Impact resistantReturns to original shape without permanent distortion.
✓
Non-toxic & Halogen-freeSafe for enclosed spaces and clean rooms.
✓
Easy to installSimple cutting, drilling, and mechanical coupling.
✓
Long life cycleMinimal maintenance with decades of service life.
Engineering Specifications

Standard specification is available as per below table

Inside width, design load ratings, and resin material selection for perforated channel cable trays.

Inside Width Load Design Material Choice
50mm 10kg/mtr. Polyester/Vinyl
75mm 12kg./mtr. Polyester/Vinyl
100mm 15kg/mtr. Polyester/Vinyl
150mm 18kg/mtr. Polyester/Vinyl
200mm 25kg/mtr. Polyester/Vinyl
300mm 30kg/mtr. Polyester/Vinyl
450mm 40kg/mtr. Polyester/Vinyl
500mm 45kg/mtr. Polyester/Vinyl
600mm 50kg/mtr. Polyester/Vinyl
CONTINUOUS INSTRUMENTATION TRAYS

Protect Sensitive Instrumentation with FRP Channel Trays

Custom widths from 50mm to 300mm with solid covers, ventilated perforations, and snap-lock fasteners.
